Silver Filled Silicone  (ECR-105)                                                         Proudly MADE IN USA





                                                                                               All Products are manufactured in Anaheim, CA . USA





                                                                                                       CALL US: 1-888-327-7122 / 714-414-0977

                                                                                                       Email: emigaskets@gmail.com

  Available as below:                                                                http://www.emiconductiverubberllc.com

* Wave Guide Gaskets                                                                         FAX: 714-414-1179

* Die-cut Gaskets

* Molded Gaskets

* Extruded Gaskets

* Molded Sheets

* Molded O-Rings

* Molded D-Rings

* Molded P-Rings

* Custom Extruded Shapes (profiles)

* Custom Molded Parts


Product Description:


This material is specifically engineered for EMI/RFI applications where it will subject to Electromagnetic Impulse, Elevated Temperature Environment.  It is one of the most conductive elastomers  available and being used in Military and Aerospace Applications and high end Electronic, satellite products as connectors, waveguide gaskets.  This material will withstand temperature from -55°C to 160°C. Far Excellent in Electrical Conductivity than other silver coated elastomers. The characteristics are included as follow:


- EMI/RFI Shielding

- High/Low Temperatures

- Light Weight/Airborn

- Low Enclosure Force

- Ozone Resistance

- Temperature Stability between -55°C to 160°C


Applications:

Military/Aerospace/Electronic Applications

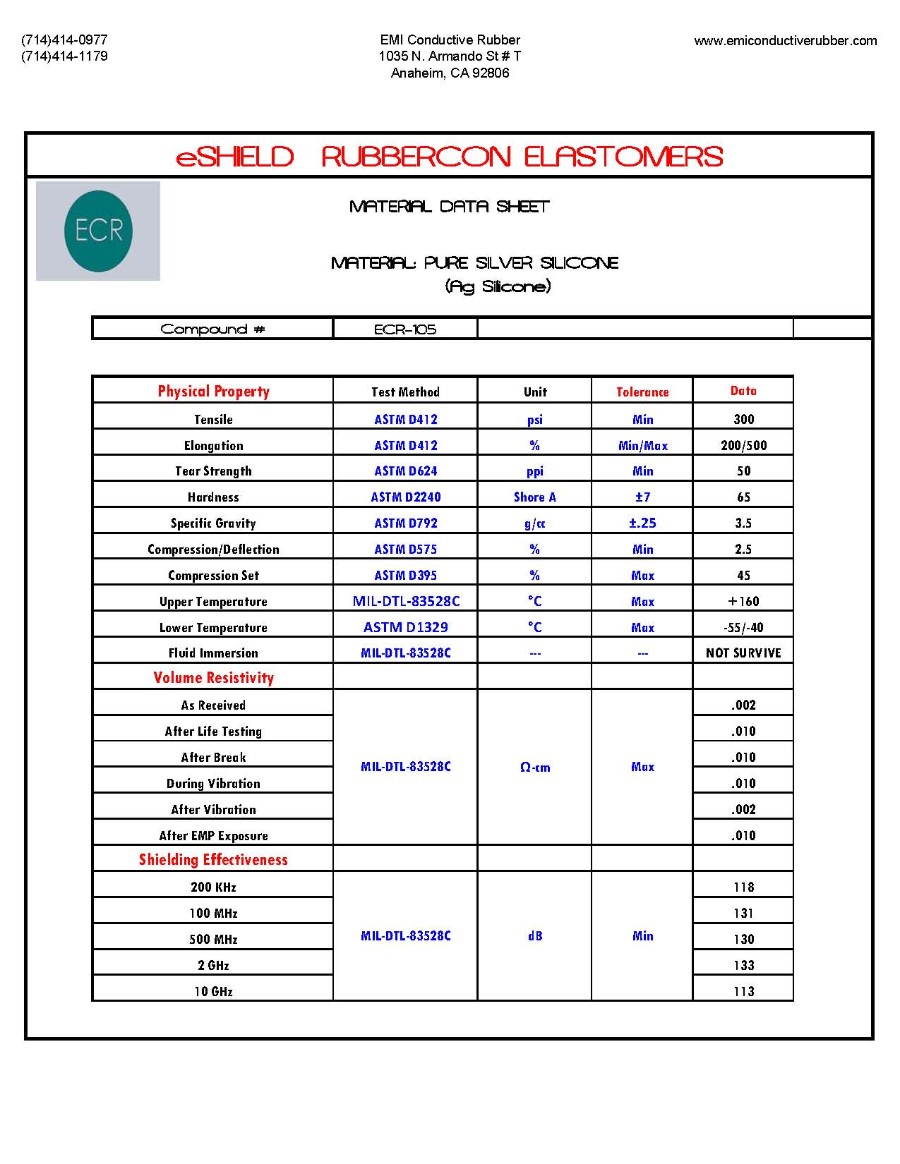

Specifications:

- Specific Gravity (g/cc): 3.75 ± .25

- Hardness (Shore A): 65 ± 7

-Tensile (psi): 300 Min

-Elongation (%): 200 Min / 500 Max

- Tear Strength (ppi): 50 Min

- Volume Resistivity (ohm-cm): 0.002
