EMI Conductive Rubber, LLC

Silver Coated Nickel Filled Silicone  (ECR-111)                                                   Proudly MADE IN USA

                                                                                                                All Products are manufactured in Brea, CA . USA

                                                                                                                     CALL US: 1-714-582-7718  / 714-414-0977

                                                                                                                             Email: emigaskets@gmail.com

 Available as below:

* Wave Guide Gaskets

* Die-cut Gaskets

* Molded Gaskets

* Extruded Gaskets

* Molded Sheets

* Molded O-Rings

* Molded D-Rings

* Molded P-Rings

* Custom Extruded Shapes (profiles)

* Custom Molded Parts


Product Description:


This material is specifically engineered for EMI/RFI applications where it will subject to Electromagnetic Impulse (EMP) environment.  This material will withstand temperature from -55°C to 125°C. Excellent in Electrical Conductivity. Very Mild in Galvanic Corrosion Resistance. Typically, it is common used in military applications. The characteristics are included as follow:


- EMI/RFI Shielding

- Hot/Cold Temperatures

- Conduct electrons throughout the material

- Ozone Resistance

- Low Outgassing Resistance

- Temperature Stability between -55°C to 125°C

- Military Applications


Applications:

Military Applications, Protect Equipment from Electromagnetic Impulse Surge.

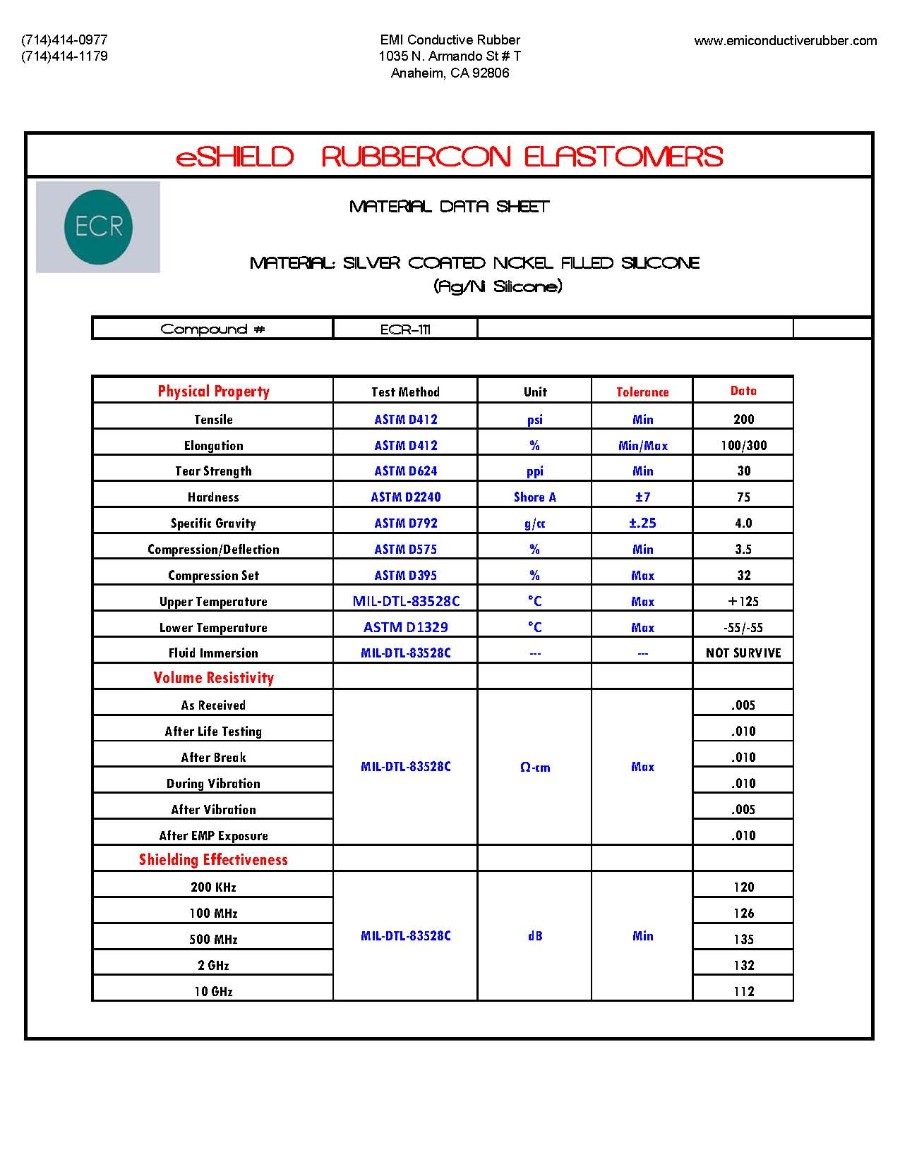

Specifications:

- Specific Gravity (g/cc): 4.00 ± .25

- Hardness (Shore A): 75 ± 7

-Tensile (psi): 200 Min

-Elongation (%): 100 Min / 300 Max

- Tear Strength (ppi): 30 Min

- Volume Resistivity (ohm-cm): 0.005
