Silver Coated Glass Filled Silicone (ECR-112)

Available as below:

  • * Tubing
  • * Cords
  • * Solid D-Profiles
  • * Hollow D-Profiles
  • * Solid P-Profiles
  • * Hollow P-Profiles
  • * Wave Guide Gaskets
  • * Die-cut Gaskets
  • * Molded Gaskets
  • * Extruded Gaskets
  • * Molded Sheets
  • * Molded O-Rings
  • * Molded D-Rings
  • * Molded P-Rings
  • * Custom Extruded Shapes (profiles)
  • * Custom Molded Parts

Product Description:

This material is specifically engineered for EMI/RFI applications where it will subject to low closure force environment. This material will withstand temperature from -55°C to 160°C. Excellent in Electrical Conductivity. Very Mild in Galvanic Corrosion Resistance. Typically, it is common used in military applications. The characteristics are included as follow:

  • - EMI/RFI Shielding
  • - Hot/Cold Temperatures
  • - Conduct electrons throughout the material
  • - Ozone Resistance
  • - Low Outgassing Resistance
  • - Temperature Stability between -55°C to 160°C
  • - Military Applications

Applications:

Military Applications, Protect Equipment from Electromagnetic Impulse Surge.

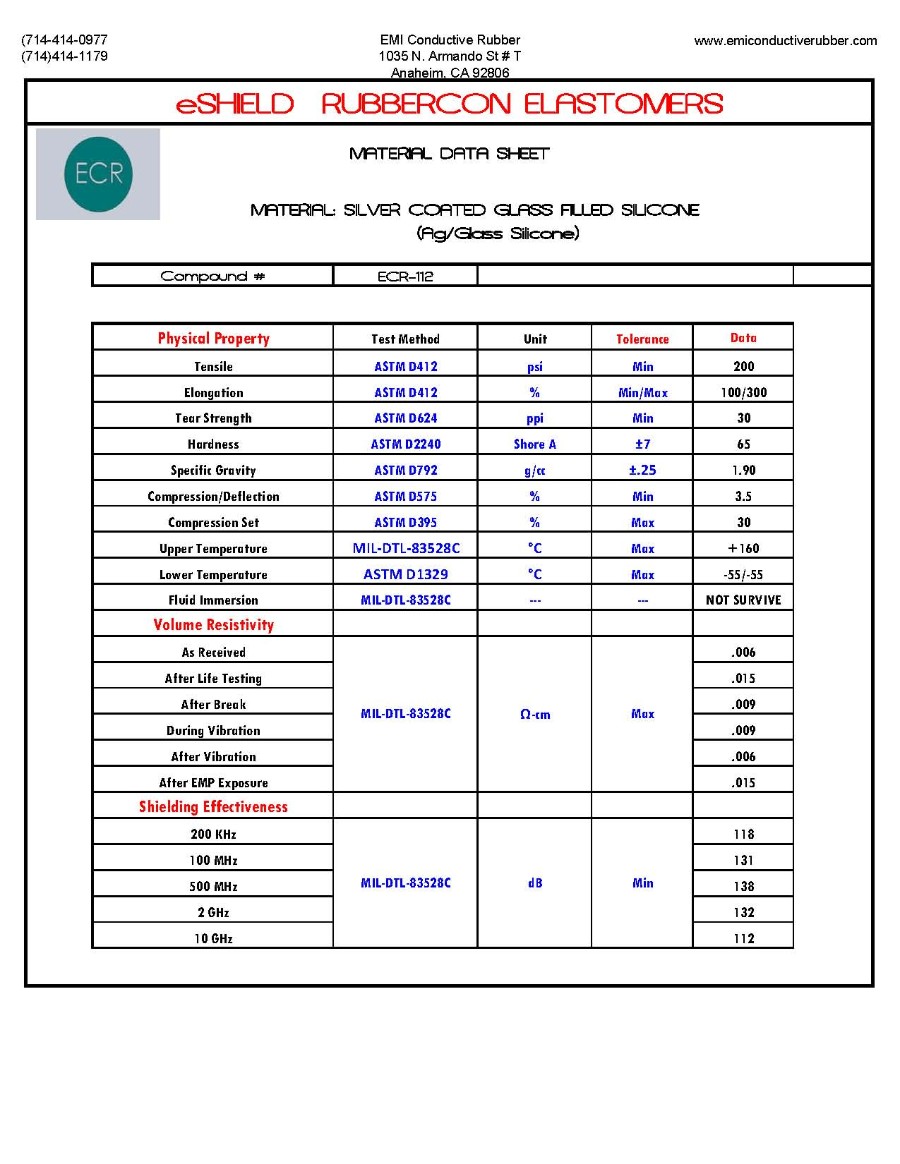

Specifications:

  • - Specific Gravity (g/cc): 1.90 ± .25
  • - Hardness (Shore A): 65 ± 7
  • -Tensile (psi): 200 Min
  • -Elongation (%): 100 Min / 300 Max
  • - Tear Strength (ppi): 30 Min
  • - Volume Resistivity (ohm-cm): 0.006
