Nickel Coated Graphite Filled EPDM (ECR-218)                                                   Proudly MADE IN USA



Available as below:

* Tubing                                                                                      All Products are manufactured in Anaheim, CA . USA

* Cords

*  Solid D-Profiles

* Hollow D-Profiles                                                                  CALL US: 1-888-327-7122 / 714-414-0977

* Solid P-Profiles                                                                      Email: emigaskets@gmail.com

* Hollow P-Profiles                                                                  http://www.emiconductiverubberllc.com

* Wave Guide Gaskets                                                                         FAX: 714-414-1179

* Die-cut Gaskets

* Molded Gaskets

* Extruded Gaskets

* Molded Sheets

* Molded O-Rings

* Molded D-Rings

* Molded P-Rings

* Custom Extruded Shapes (profiles)

* Custom Molded Parts

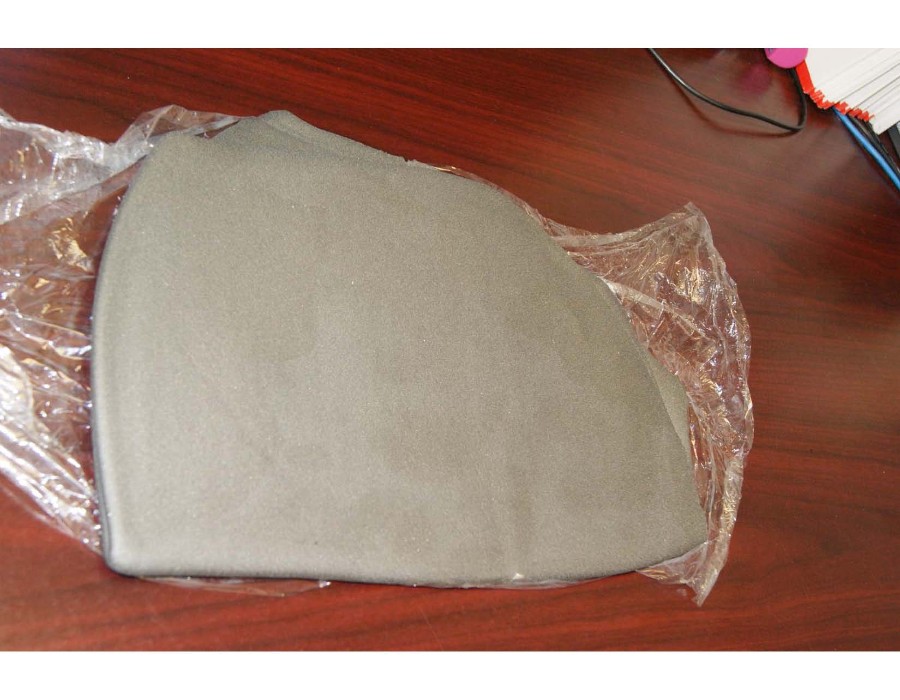

Product Description:


This material is specifically engineered for EMI/RFI applications where it will subject to Nuclear Bio Chemical, salt fog environments.  This material will withstand temperature from -40°C to 125°C. Excellent in Electrical Conductivity. Very Good in Galvanic Corrosion Resistance.  The characteristics are included as follow:


- EMI/RFI Shielding

- Can be used as grounding applications

- Conduct electrons throughout the material

- Pressure Sealing at low pressure

- Most Economical material compare with silver coated elastomers

- Temperature Stability between -40°C to 125°C

- Nuclear Bio Chem Resistance

- Salt Fog Resistance


Applications:

Electronic devices, Cable box, Satellite Box, Cellphone, Network Routers, Semiconductor, Gaskets, Computer Enclosures, Hand Held Devices, Medical  Diagnostic, and Analytical Equipment, Aerospace & Automotive, Electronic Systems.

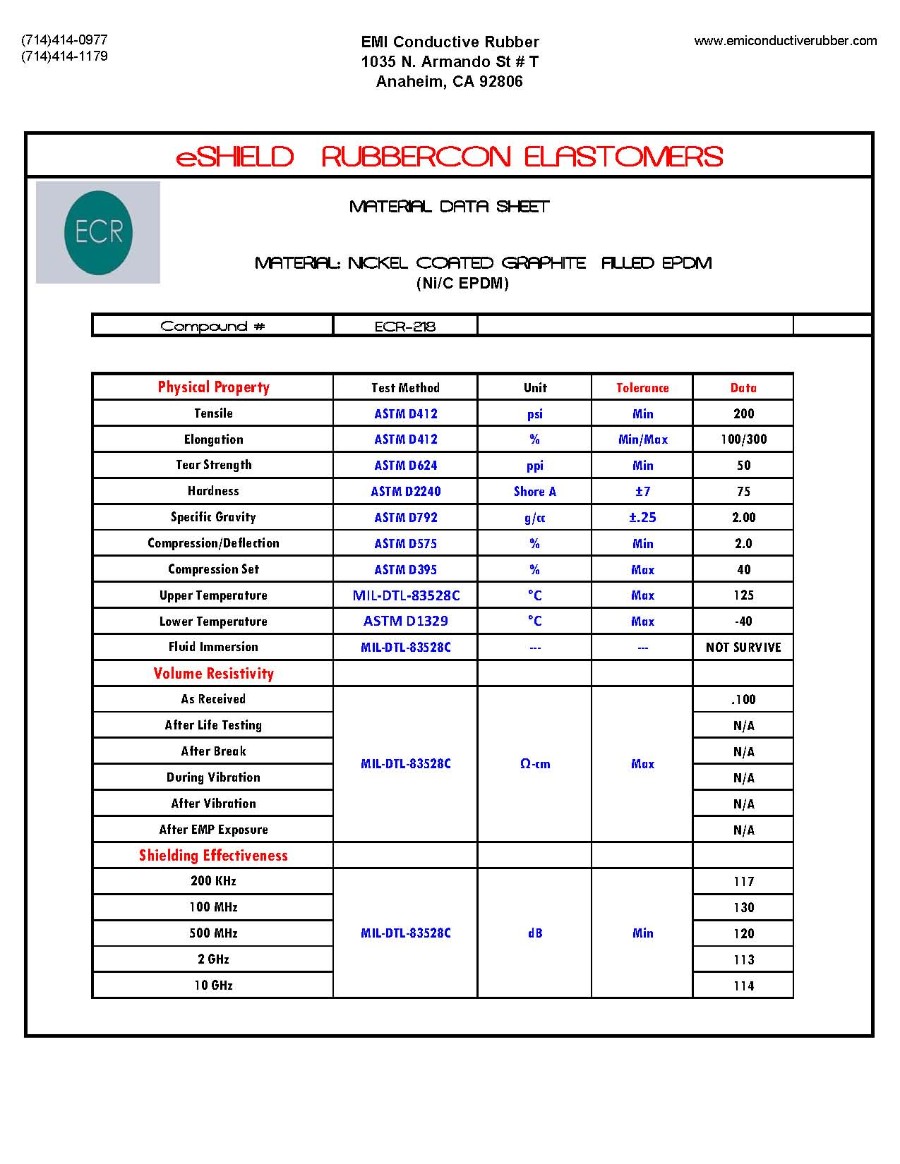

Specifications:

- Specific Gravity (g/cc): 2.00 ± .25

- Hardness (Shore A): 75 ± 7

-Tensile (psi): 200 Min

-Elongation (%): 100 Min / 300 Max

- Tear Strength (ppi): 50 Min

- Volume Resistivity (ohm-cm): 0.100
