Silver Coated Copper Filled Silicone  (ECR-101)                                                   Proudly MADE IN USA



Available as below:

* Tubing                                                                                      All Products are manufactured in Anaheim, CA . USA

* Cords

*  Solid D-Profiles

* Hollow D-Profiles                                                                  CALL US: 1-888-327-7122 / 714-414-0977

* Solid P-Profiles                                                                      Email: emigaskets@gmail.com

* Hollow P-Profiles                                                                  http://www.emiconductiverubberllc.com

* Wave Guide Gaskets                                                                         FAX: 714-414-1179

* Die-cut Gaskets

* Molded Gaskets

* Extruded Gaskets

* Molded Sheets

* Molded O-Rings

* Molded D-Rings

* Molded P-Rings

* Custom Extruded Shapes (profiles)

* Custom Molded Parts


Product Description:


This material is specifically engineered for EMI/RFI applications where it will subject to Electromagnetic Impulse (EMP) environment.  This material will withstand temperature from -55°C to 125°C. Excellent in Electrical Conductivity. Very Mild in Galvanic Corrosion Resistance. Typically, it is common used in military applications. The characteristics are included as follow:


- EMI/RFI Shielding

- Hot/Cold Temperatures

- Conduct electrons throughout the material

- Ozone Resistance

- Low Outgassing Resistance

- Temperature Stability between -55°C to 125°C

- Military Applications


Applications:

Military Applications, Protect Equipment from Electromagnetic Impulse Surge.

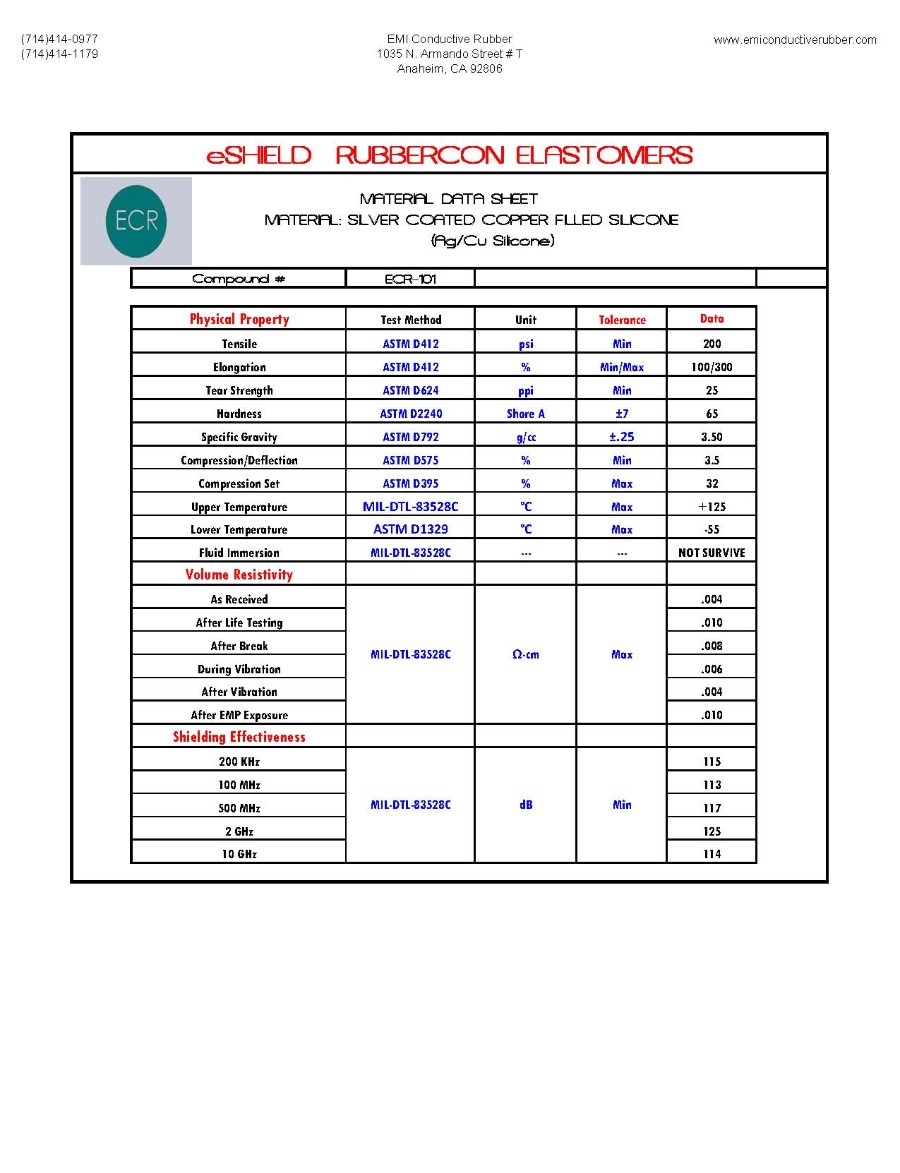

Specifications:

- Specific Gravity (g/cc): 3.50 ± .25

- Hardness (Shore A): 65 ± 7

-Tensile (psi): 200 Min

-Elongation (%): 100 Min / 300 Max

- Tear Strength (ppi): 25 Min

- Volume Resistivity (ohm-cm): 0.004
