Conductive Carbon Filled Silicone (ERC-225)
Available as below:

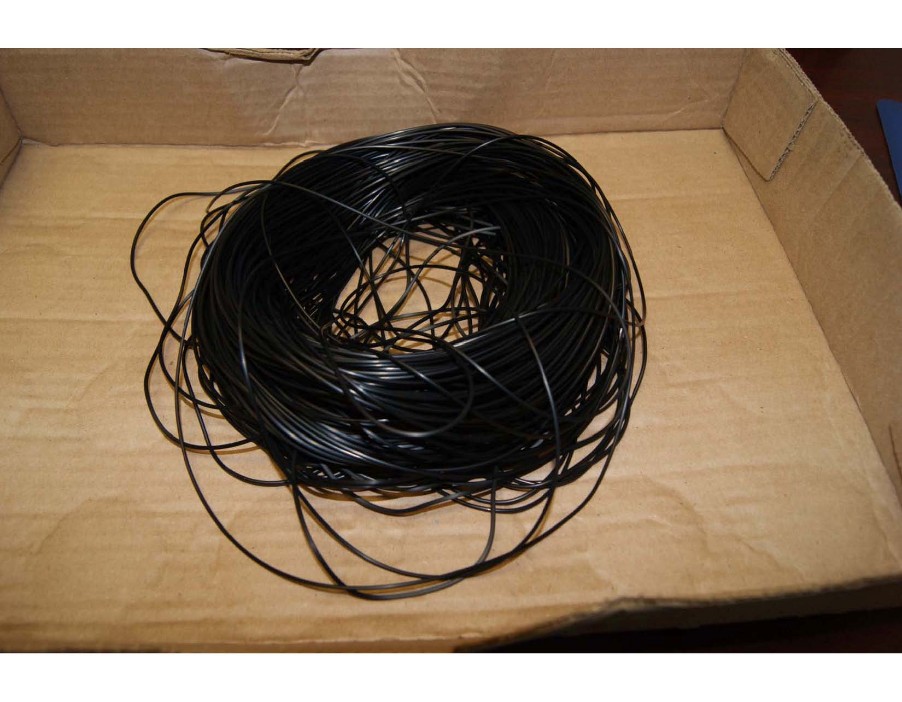

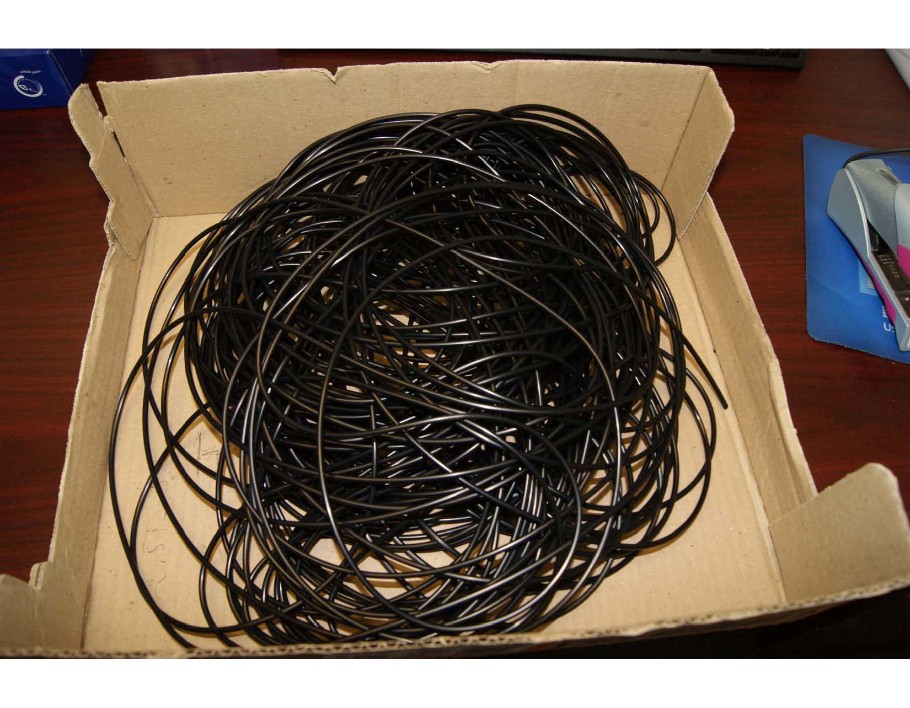

- * Tubing
- * Cords
- * Solid D-Profiles
- * Hollow D-Profiles
- * Solid P-Profiles
- * Hollow P-Profiles
- * Wave Guide Gaskets
- * Die-cut Gaskets
- * Molded Gaskets
- * Extruded Gaskets
- * Molded Sheets
- * Molded O-Rings
- * Molded D-Rings
- * Molded P-Rings
- * Custom Extruded Shapes (profiles)
- * Custom Molded Parts
Product Description:
This material is specifically engineered to handle ESD (Electro-Static Discharge) in Electronic Applications. It has been used widely to protect high performance chips in electronic equipment as well as computerized devices. The characteristics are included as follow:
- - Thermal Conductivity Stability
- - Protection against Static Discharge
- - Low Amperage Conductor
- - EMI/RFI Shielding
Applications:
O-Rings, Door Gaskets, Semiconductor, IC Testing Handling, ESD pads, Cell phone Gaskets, Computer Enclosures, Hand Held Devices, Network Routers, Medical Diagnostic, and Analytical Equipment, Aerospace & Automotive, Electronic Systems CATV Boxes.
Specifications:
- - Specific Gravity (g/cc): 1.30 ± .25
- - Hardness (Shore A): 70 ± 7
- -Tensile (psi): 600 Min
- -Elongation (%): 100 Min / 300 Max
- - Tear Strength (ppi): 50 Min
- - Volume Resistivity (ohm-cm): 10
![](resources/CARBON%20BLACK%20SILICONE%20TUBING_Page_1.jpg.opt902x702o0%2C0s902x702.jpg)
![](resources/CARBON%20BLACK%20SILICONE%20TUBING_Page_2.jpg.opt910x708o0%2C0s910x708.jpg)
![](resources/MDS-ECR225%20Rev%20A.jpg.opt900x1173o0%2C0s900x1173.jpg)
